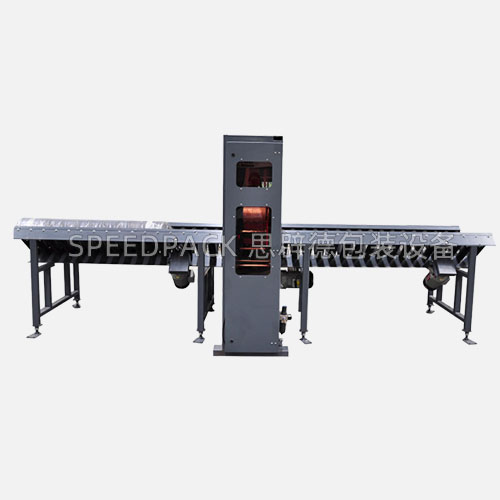

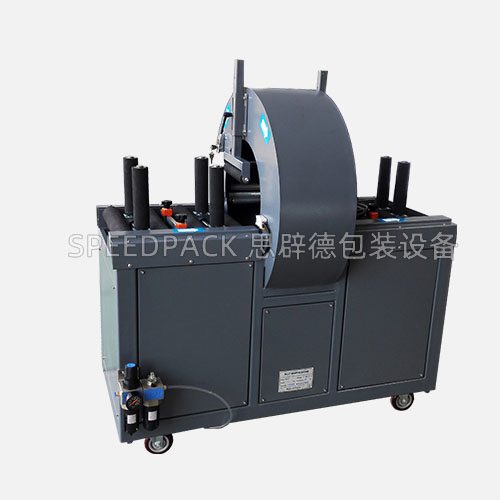

High-Speed Horizontal Orbital Wrapper

Supports Customization：-
Industries Served：Plastic Profiles, Aluminum Extrusions, Sheet Materials, Pipes & Tubes, Textile & Dyed Fabrics, and Window/Door Manufacturing.
Product Overview：High-Speed Horizontal Ring Stretch Wrapper, Engineered for high-throughput wrapping of long-profile goods such as aluminum extrusions, panels, pipes, and bars. Fully Automated Film Handling: Automatically clamps, cuts, and feeds stretch film, enabling mid-length bundling at any position along the load—ideal for multi-point securing of long materials. Intelligent Control System: Controlled by a programmable PLC with all parameters set via a user-friendly touchscreen HMI Inverter-driven speed control for both the rotary ring and conveyor, allowing precise adjustment of film overlap ratio to match packaging requirements Stable Load Fixation: Integrated pneumatic or mechanical pressing mechanism firmly secures the load during wrapping, ensuring smooth, vibration-free operation—even at high speeds. Smart Sensing & Safety: Photoelectric sensors automatically detect load presence and position Auto-positioning of the wrapping ring for consistent start/stop points Emergency stop, fault alarms, and real-time operational status display on HMI Optimized for Efficiency: Designed for continuous, unattended operation in high-volume production lines—reducing labor costs while enhancing packaging consistency and product protection.

+86 17701725961

Model Specifications

Specification / Parameter	Value
Rotary Ring Inner Diameter	600 mm (Optional: 400 / 900 / 1200 / 1500 mm or custom sizes available)
Max. Load Cross-Section (W × H)	550 mm (W) × 550 mm (H) (Custom dimensions available)
Rotary Ring Speed	25–60 rpm, frequency-controlled
Conveyor Length	Customized according to customer requirements
Power Supply	3-phase, 380 V AC, 50/60 Hz, 20 A Main motor: 0.75 kW + Conveyor drive (power varies by length)

Support & Services

Quality Assurance, Efficient Collaboration

Speed specializes in the R&D of end-of-line automated packaging systems. We hold multiple invention patents in packaging equipment and employ a team of senior electromechanical engineers and designers to ensure product quality and project efficiency.

Dedicated Shipment & Rigorous Testing

We deliver on schedule as agreed. Every machine undergoes strict factory testing before shipment. Equipment is wrapped in stretch film and secured in wooden crates or with wooden bracing for full protection against moisture and damage during transit—shipped as a complete unit.

Premium After-Sales Service

Prior to equipment commissioning, we provide free on-site training for your installation and management teams at the project location. Training covers equipment installation, system components, operation procedures, and maintenance protocols.
