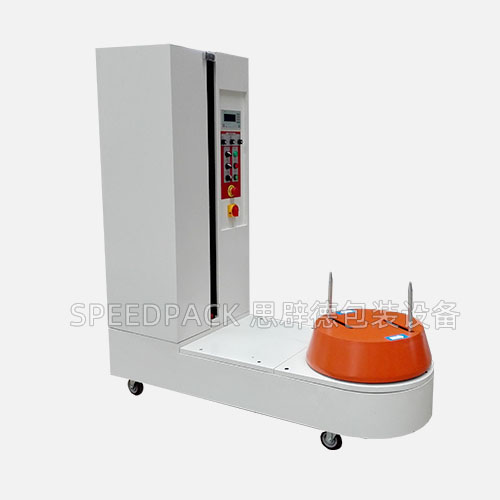

Luggage Wrapping Machine

Supports Customization：-
Industries Served：Ideal for luggage wrapping at airports, railway stations, seaports, and logistics hubs.
Product Overview：Luggage Stretch Wrapping Machine, Specially designed for wrapping individual or small-sized parcels at airports, railway/bus stations, seaports, courier service points, and other public logistics environments. 360° Full-Coverage Wrapping: Provides comprehensive protection against damage, moisture, dirt, and tampering during transit—ensuring luggage integrity and security. Portable & User-Friendly Design: The unit is mobile for flexible deployment. Operators simply place the item on the turntable and adjust the vertical guide post to match the load width, ensuring stable positioning. Fully Automatic Operation: Press the start button on the control panel to initiate the cycle. Built-in photoelectric sensors automatically detect load height. Wrap layers are programmable from 1 to 9 (typically 3–5 layers are sufficient for most items). Ideal for travelers, parcel shops, and logistics counters seeking a fast, reliable, and secure way to protect personal baggage or small shipments.

+86 17701725961

Model Specifications

Specification / Parameter	Value
Turntable Diameter	550 mm
Load Dimensions (L × W × H)	Length: 250–1200 mm × Width: 200–400 mm × Height: 250–1200 mm
Turntable Speed	25 rpm (frequency-controlled, adjustable)
Turntable Load Capacity	50 kg
Film Carriage System	Powered pre-stretch film carriage with variable film tension control (via VFD)
Power Supply	1-phase, 220 V AC, 50 Hz, 20 A, 1.0 kW
Overall Dimensions (L × W × H)	1600 × 600 × 1740 mm
Machine Weight	250 kg

Support & Services

Quality Assurance, Efficient Collaboration

Speed specializes in the R&D of end-of-line automated packaging systems. We hold multiple invention patents in packaging equipment and employ a team of senior electromechanical engineers and designers to ensure product quality and project efficiency.

Dedicated Shipment & Rigorous Testing

We deliver on schedule as agreed. Every machine undergoes strict factory testing before shipment. Equipment is wrapped in stretch film and secured in wooden crates or with wooden bracing for full protection against moisture and damage during transit—shipped as a complete unit.

Premium After-Sales Service

Prior to equipment commissioning, we provide free on-site training for your installation and management teams at the project location. Training covers equipment installation, system components, operation procedures, and maintenance protocols.
